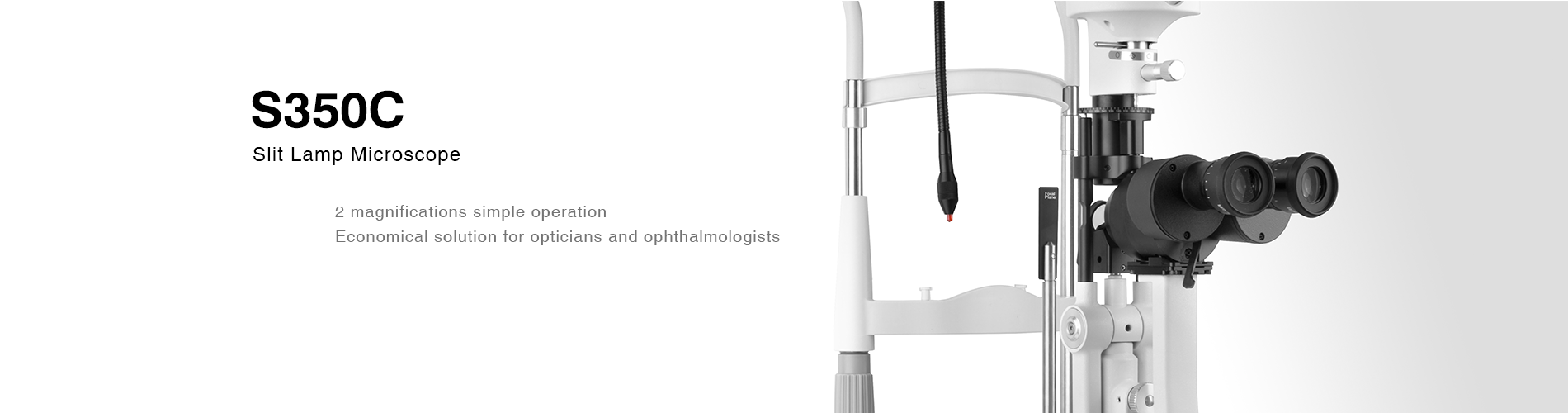

| Features: MediWorks adopts converging stereoscopic microscope used in the S350C. The excellent image for users. Two steps of magnification are provide. The 14mm aperture fit for eye pre-checking of wearing contact lenses and the corneal foreign object examination. 6V/20W Osram halogen lamp is employed in S350C, which provides strong and stable lighting for observations. LED light source is optional. Heat absorbing filter, ND filter, Red-free filter and Cobalt Blue filter are provided. | |
| Specifications: | |
| Microscope | |
| Microscope | Converging Stereoscope |
| Magnification Change | 2 steps by Objective Lens Rotation |
| Total Magnification | 10X, 16X |
| Eyepieces | 12.5X |
| Angle between Eyepieces | 13° |
| Pupillary Adjustment | 52 mm-78 mm |
| Diopter Adjustment | +5.0 D ~ -8.0 D |
| Field of View | Φ18 mm（10X）, Φ14.5 mm(16X) |
| Instrument Base | |
| Longitudinal Movement | 110 mm |
| Lateral Movement | 110 mm |
| Vertical Movement | 30 mm |
| Fine Base Movement | 15 mm |
| Chin-rest | |
| Vertical Movement | 80 mm |
| Fixation | LED |
| Slit Illumination | |
| Slit Width | 0~14 mm continuous (slit becomes a circle at 14 mm) |
| Slit Length | 0~14 mm continuous |
| Aperture Diameter | Φ14 mm, Φ10 mm, Φ5 mm, Φ3 mm, Φ2mm, Φ1mm, Φ0.2mm |
| Slit Angle | 0°~180° |
| Slit Inclination | 5°, 10°, 15°, 20° |
| Filters | Heat-absorbing filter, ND filter, Red-free filter, Cobalt Blue filter |
| Lamp | 6V/20W Halogen Lamp |
| Luminance | ≥50KLX |
| Power Supply | |
| Input voltage | 220 V/110 V±10% |
| Input frequency | 50 Hz/60 Hz |
| Power Consumption | 30 VA (max) |
| Output voltage | Lamp 6 V, Fixation 3 V |
| Packaging | |
| Dimension | 770 mm x 470 mm x 570 mm(L/W/H) |
| Weight | Gross weight 26kg Net weight 18kg |
