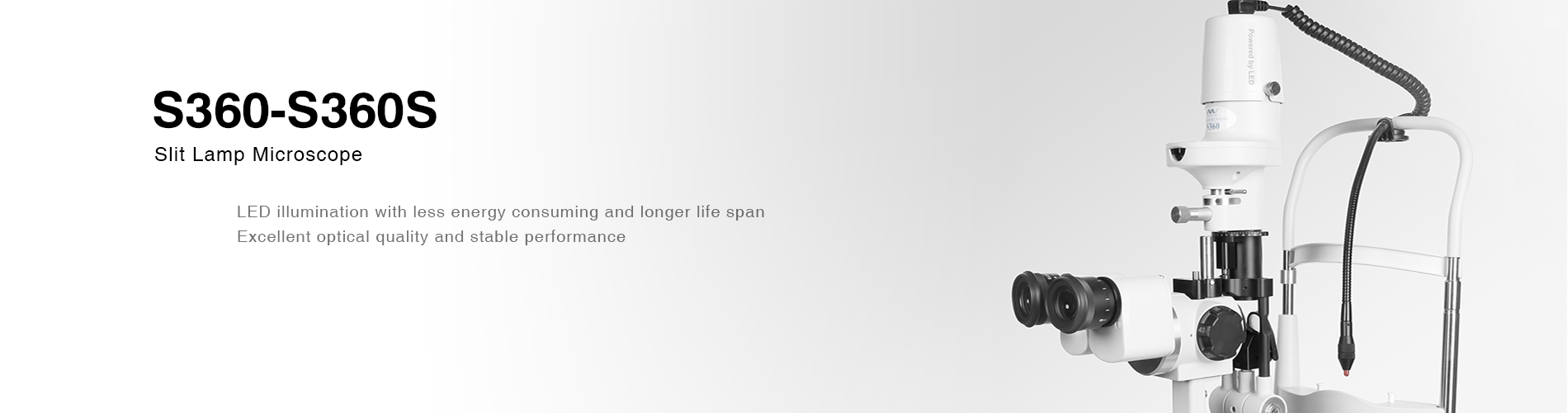

| Features: Classic Galilean type microscope Total magnification ratio: S360:6X, 10X, 16X, 25X, 40X S360S:10X, 16X, 25X Max.Aperture diameter: Ø14mm Convergence angle of eyepieces:13° Excellent stability, available with applanation tonometer, digital camera, CCD, teaching tube, etc. | |
| Specifications: | |
| Microscope | |
| Microscope | Galilean Type |
| Magnification Change | Revolving Drum |
| Total Magnification | 6X, 10X, 16X, 25X, 40X (S360) 10X, 16X, 25X (S360S) |
| Eyepieces | 12.5X |
| Angle between Eyepieces | 13° |
| Pupillary Adjustment | 52 mm-78 mm |
| Diopter Adjustment | ±6.0 D |
| Field of View | Φ34.7mm(6X), Φ22mm（10X）, Φ13.5mm(16X), Φ8.5mm（25X），Φ5.5mm(40X) |
| Instrument Base | |
| Longitudinal Movement | 110 mm |
| Lateral Movement | 110 mm |
| Vertical Movement | 30 mm |
| Fine Base Movement | 15 mm |
| Chin-rest | |
| Vertical Movement | 80 mm |
| Fixation | LED |
| Slit Illumination | |
| Slit Width | 0~14 mm continuous (slit becomes a circle at 14 mm) |
| Slit Length | 0~14 mm continuous |
| Aperture Diameter | Φ14 mm, Φ10 mm, Φ5 mm, Φ3 mm, Φ2 mm, Φ1 mm, Φ0.2 mm |
| Slit Angle | 0°~180° |
| Slit Inclination | 5°, 10°, 15°, 20° |
| Filters | Heat-absorbing filter, ND filter, Red-free filter, Cobalt Blue filter |
| Lamp | 3 V/3 W LED Module |
| Luminance | ≥60 KLX |
| Power Supply | |
| Input voltage | 220 V/110 V±10% |
| Input frequency | 50 Hz/60 Hz |
| Power Consumption | 30 VA (max) |
| Output voltage | Lamp 6 V, Fixation 3 V |
| Packaging | |
| Dimension | 770 mm x 470 mm x 570 mm(L/W/H) |
| Weight | Gross weight 26 kg Net weight 18 kg |
