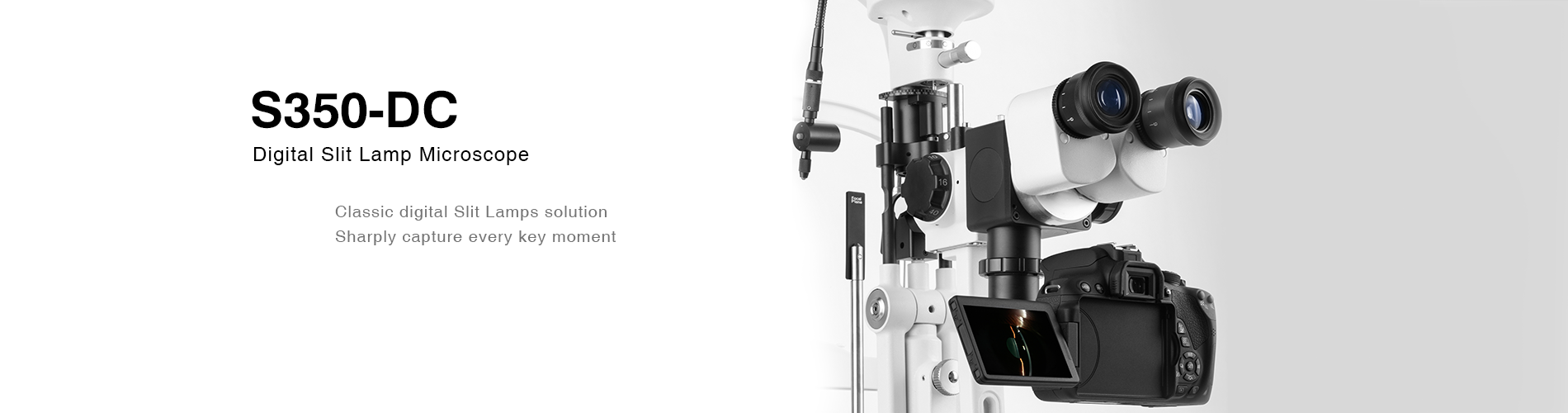

| Features: Integrated with professional digital camera, excellent optical system, Digital Slit Lamp can provide a high quality ophthalmic image. This system adopts the professional digital single lens reflex camera. | |
| Specifications: | |
| Microscope | |
| Microscope | Galilean Type |
| Magnification Change | Revolving Drum |
| Total Magnification | 6X, 10X, 16X, 25X, 40X |
| Eyepieces | 12.5X |
| Angle between Eyepieces | 13° |
| Pupillary Adjustment | 52 mm-78 mm |
| Diopter Adjustment | ±6.0D |
| Field of View | Φ34.7mm(6X), Φ22mm（10X）, Φ13.5mm(16X), Φ8.5mm（25X），Φ5.5mm(40X) |
| Instrument Base | |
| Longitudinal Movement | 110 mm |
| Lateral Movement | 110 mm |
| Vertical Movement | 30 mm |
| Fine Base Movement | 15 mm |
| Chin-rest | |
| Vertical Movement | 80 mm |
| Fixation | LED |
| Slit Illumination | |
| Slit Width | 0~14 mm continuous (slit becomes a circle at 14 mm) |
| Slit Length | 0~14 mm continuous |
| Aperture Diameter | Φ14 mm, Φ10 mm, Φ5 mm, Φ3 mm, Φ2 mm, Φ1 mm, Φ0.2 mm |
| Slit Angle | 0°~180° |
| Slit Inclination | 5°, 10°, 15°, 20° |
| Filters | Heat-absorbing filter, ND filter, Red-free filter, Cobalt Blue filter |
| Lamp | 6V/20W Halogen Lamp |
| Luminance | ≥50KLX |
| Power Supply | |
| Input voltage | 220V/110V±10% |
| Input frequency | 50Hz/60Hz |
| Power Consumption | 30VA (max) |
| Output voltage | Lamp 6V, Fixation 3V |
| Packaging | |
| Dimension | 770mm x 470mm x 570mm(L/W/H) |
| Weight | Gross weight 26kg Net weight 18kg |
